The UA10 with Intel® Large Display Module is a hassle-free thin client solution. The easy-to-deploy and maintain design provides various features while being easy to manage, reducing business costs. With a 23.8-inch FHD LCD bezel-free design, every feature can be viewed with enhanced depth for maximum concentration. UA10 also maintains seamless online interaction with 5M network cameras and dual microphones, making it easy to collaborate with colleagues at home or in the office.
- Funktionen
- Spezifikation
- Downloads
Smart Performance, Smarter Savings
The UA10, powered by Intel® Celeron® Processor, combines energy efficiency with reliable performance, helping businesses maximize output while minimizing electricity expenses.
Work Smarter, Interact Better
Dual multi-display support, a 5M webcam, and dual microphones ensure efficient functionality and clear communication for healthcare, finance, and public sectors
See More, Achieve More

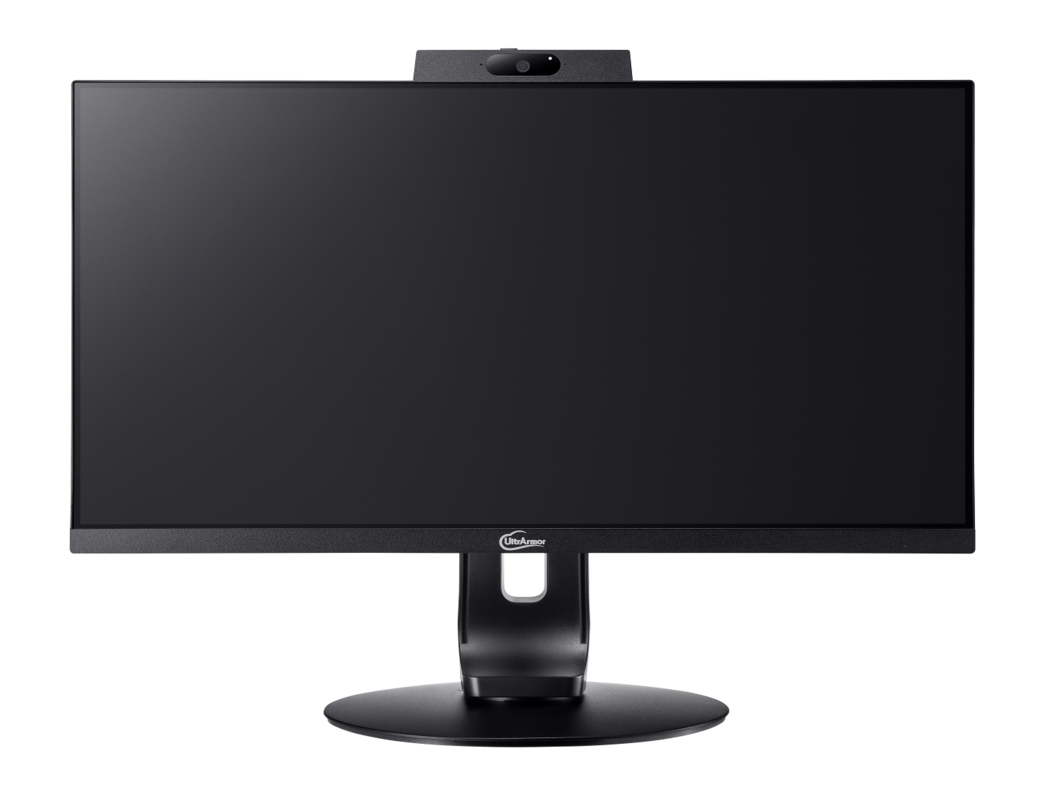

Featuring a 23.8" FHD LCD in a bezel-free, ultra-thin design, the UA10 minimizes distractions, letting you dive into work with clarity and focus

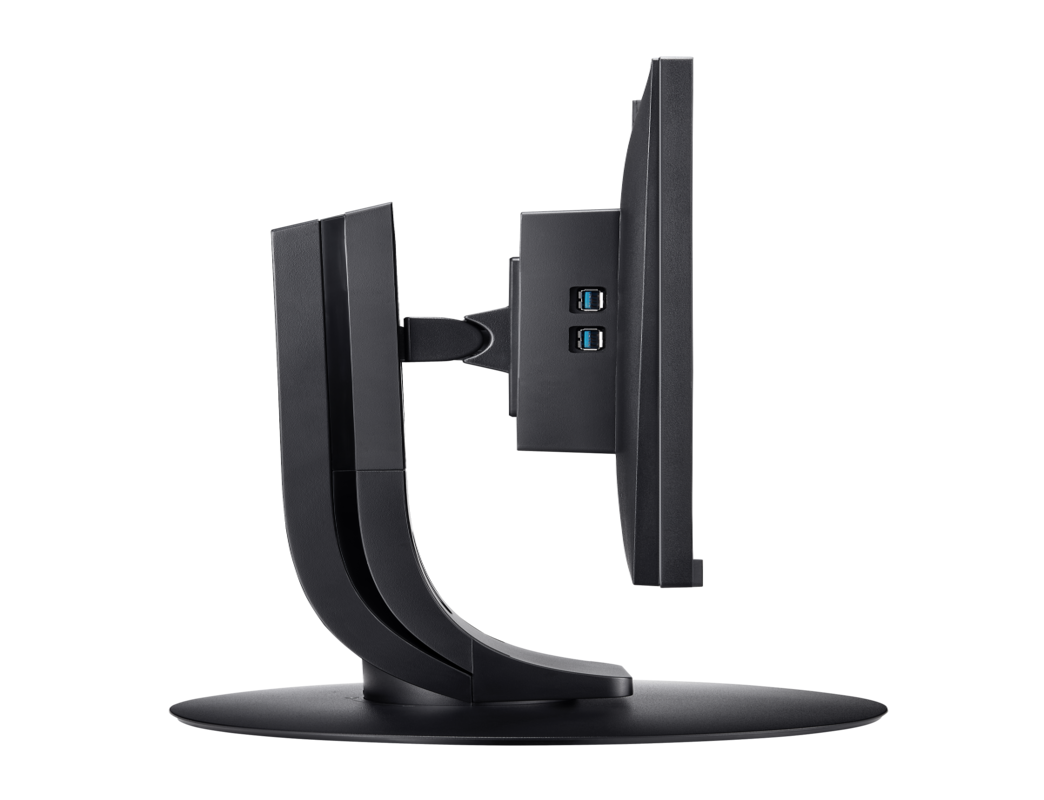

Adaptable Angles for Total Comfort
Work your way with UA10’s adjustable orientations, supporting up to 90-degree portrait and landscape modes to maximize comfort in any task
|
Leistung |
|
|
CPU |
Der Intel® Jasper Lake N5100 Prozessor unterstützt bis zu 2,8 GHz Burst Frequenz (Quad Core) |
|
Arbeits |
8GB DDR4 2933MHz Single Channel |
|
Mehrere |
23.8“ full HD LCD, 1 DP 1.4, 1 DVI-D |
|
Anzeige |
Full HD on LCD, 4K 60Hz on connected displays (Max) |
|
Helligkeit |
250 cd/m² typ. |
|
Betrachtungs |
CR(>10):178/178 (V/H) typ. |
|
Grafik und |
• Intel® 11th UHD Graphics 24EUs • Full HD 5 MP Webcam mit Mikrofonen • HEVC, VP9, and AVC decode support |
|
Schnittstellen |
|
|
WiFi (Optional) |
• M.2 for WiFi module (E Key) • 2 external antenna holes reserved • Bluetooth 5.3 |
|
Storage |
• Standardmäßig 8 GB eMMC integriert • mSATA slot for SSD installation |
|
LAN |
RJ-45 10/100/1000Mbps |
|
USB |
2 USB-A 2.0, 2 USB-A 3.2 Gen1 |
|
Audio and Sound |
1 x vorne 1x 3,5 mm TRRS Audiobuchse (Line in / Line out / Headset) |
|
Power |
Netzteil, 19 V Gleichspannung / 3,42 A, 65 WDC 19V/ 3.42A 65W power adapter |
|
Mechanical Funtion |
Tilt: -5°~23° Pivot (None): 90° Height Adjust (None): 110 mm Swivel (None): -65/65ﾟ |
|
icherheit / Verwaltbarkeit |
|
|
Diebstahl |
1x hinten |
|
TPM |
fTPM 2.0 |
|
Environment |
|
|
Kühlung |
Passive Kühlung (lüfterlos) |
|
ZERTIFIKATE/ |
CE, TÜV GS, Energy Star8.0, WEEE |
| Power Consumption | |
| Uin (V) | 230 |
| F (Hz) | 50 |
| POFF (W) | 1.14 |
| PSLEEP (W) | 1.19 |
| Plong_IDLE (W) | 3.57 |
| PSHORT_IDLE (W) | 13.27 |
| Energy Star 8.0 E TEC (KWH/year) | 50.39 |
-
2025 UltrArmor UA10 Datasheet
