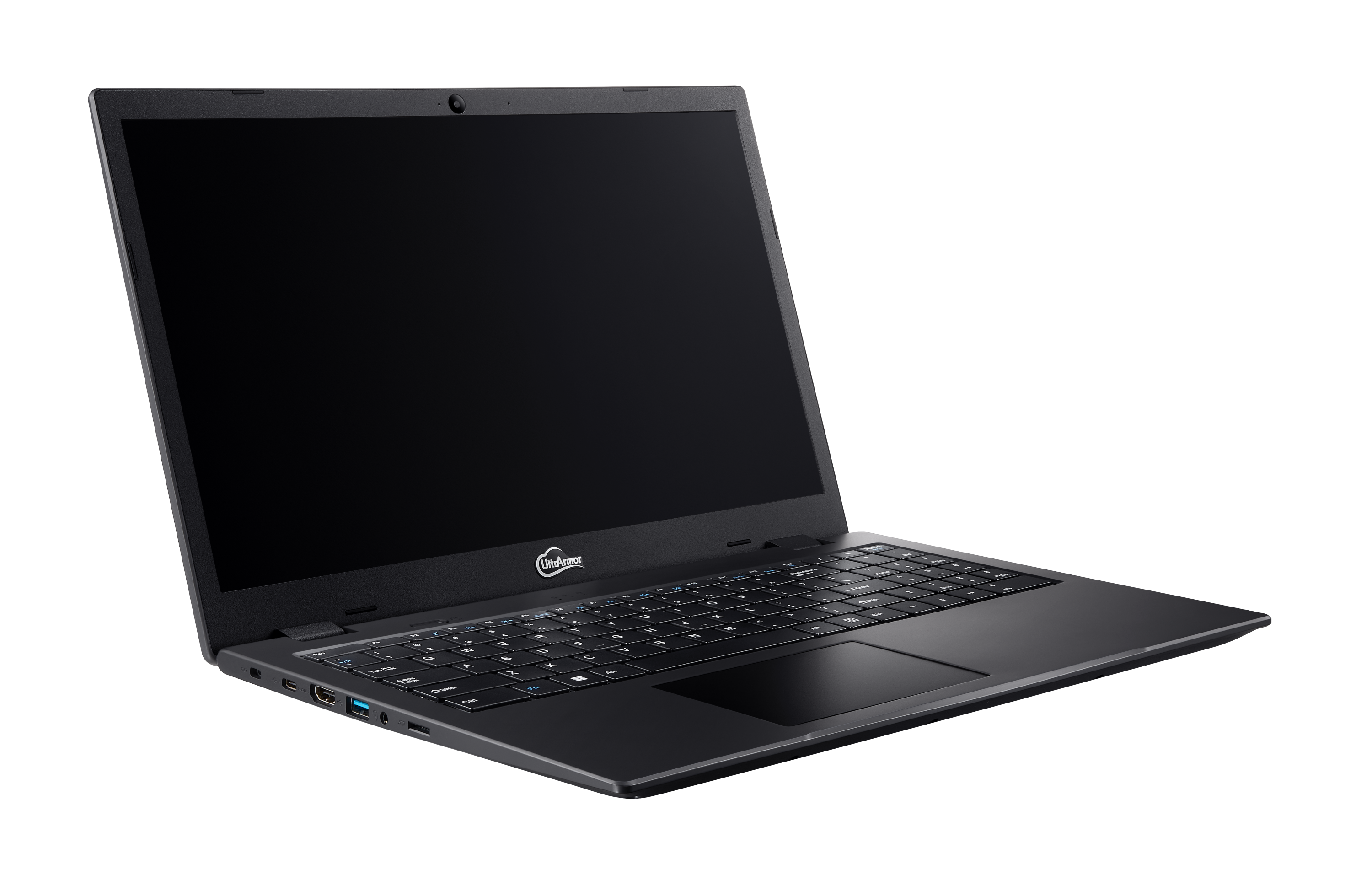

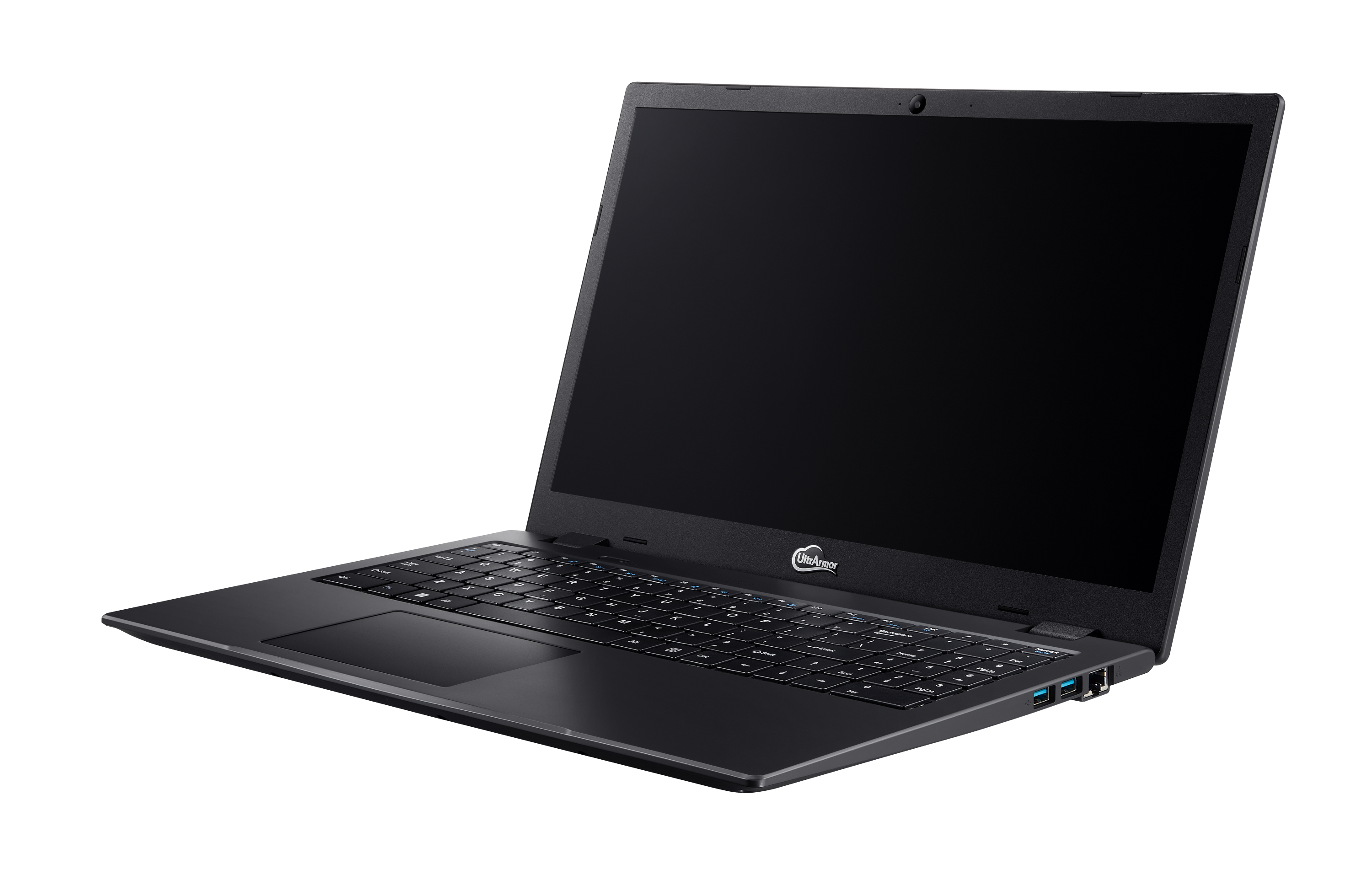

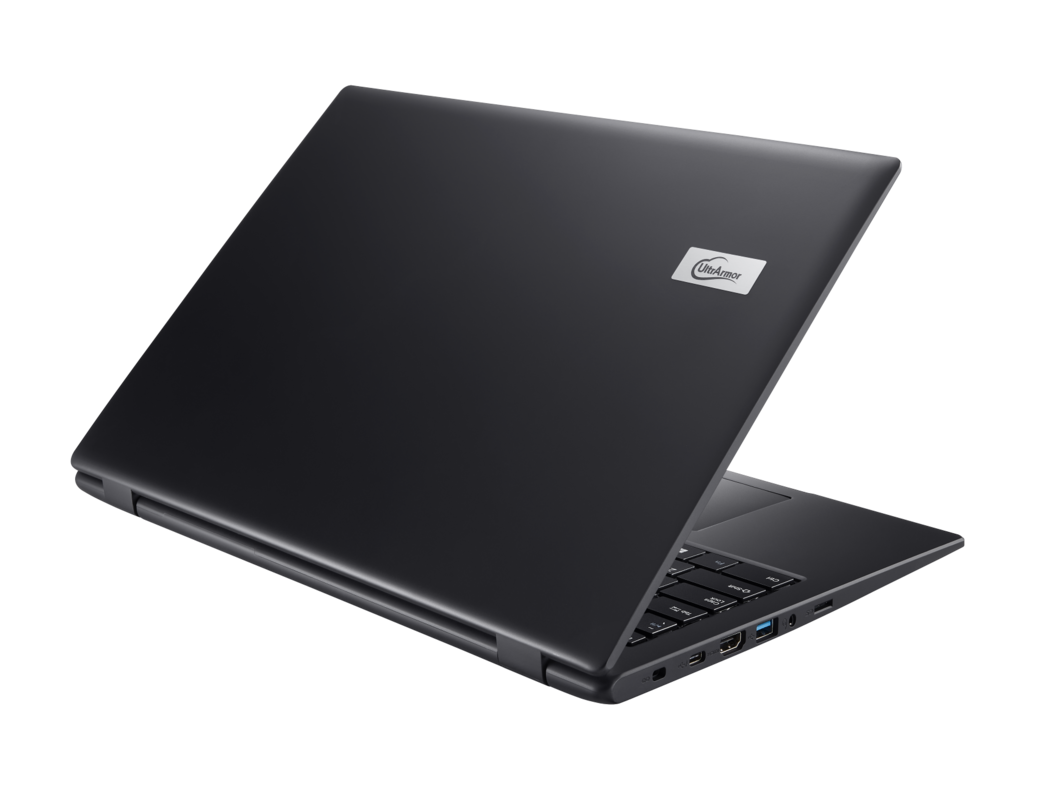

The UA9 laptop endpoint is powered by Intel® Alder Lake N quad-core processors, generating less power to extend the life of the device while delivering superior processing power. Its 15.6-inch LCD screen has a numeric keyboard, and it can be accessed from anywhere via built-in WiFi and wired connections for greater mobile productivity.
- Funktionen
- Spezifikation
- Downloads
Built Durable, Built for the Mobile Workforce
The fanless UA9 eliminates moving components, ensuring unmatched durability and dependability for your mobile workforce
Stay Connected, Stay Productive
Built-in WiFi, wired connectivity, and support for two UHD/4K displays create a seamless, immersive workspace for mobile teams
Efficiency that Saves the Day—and Your Budget
Equipped with the Intel® Alder Lake CPU, UA9 slashes electricity costs, reduces e-waste, and extends its operational lifespan—all while delivering exceptional performance
Big Screen,Big Results
UA9’s 15.6-inch LCD screen and Numpad keyboard are designed for productivity, making it ideal for intensive mobile work environments
|
Performance |
|
|
CPU |
Intel® Alder Lake N100 processor supports up to 3.4GHz max boots frequency, Quad Core |
|
Memory |
8GB DDR4-3200MHz single channel |
|
Multiple Display |
15.6“ full HD LCD, 1 HDMI 1.4, USB-C Alt mode |
|
Display Resolution |
Full HD on LCD, 4K 60Hz on connected displays(Max) |
|
Brightness (typical) |
250 cd/m² typ. |
|
Viewing Angle |
CR(>10):85/85 (V/H) typ. |
|
Graphic & Design |
• Intel® 12th UHD Graphics 24EUs • Full HD 2MP webcam with microphone • HEVC, VP9, and AVC decode support • Support AVX2 instruction sets |
|
Expandability |
|
|
WiFi (Optional) |
• Onboard combo WiFi6, 2 internal antenna (RTL8852BE) • Bluetooth 5.2 |
|
Storage |
• M.2 2280 M Key 128G SATA SSD • Micro SD Card Reader (Windows support only) |
|
LAN |
RJ-45 10/100/1000Mbps |
|
USB |
3 USB-A 3.2 Gen1, 1 USB-C 3.2 Gen1 with DP Alt mode, power delivery |
|
Audio and Sound |
Combo audio jack for headset and internal speakers |
|
Power |
USB Type-C 65W power adapter |
|
Battery |
Polymer 3S1P 11.4V/3950mAh/45W Li-Polymer Battery, 3 cells |
|
Keyboard Language |
German, Spanish, French, and English |
|
Manageability / Security |
|
|
Security Lock |
Security lock 3*7mm |
|
WoL |
RJ45 LAN with standby power design supports Magic Packet wake-up event |
|
TPM |
Infineon TPM 2.0 |
|
Environment |
|
|
Cooling |
Passive cooling |
|
Operating Temperature |
0 °C to 35 °C, 32 °F to 95 °F in vertical position |
|
Operating Humidity |
20% - 80% non-condensing |
